Description

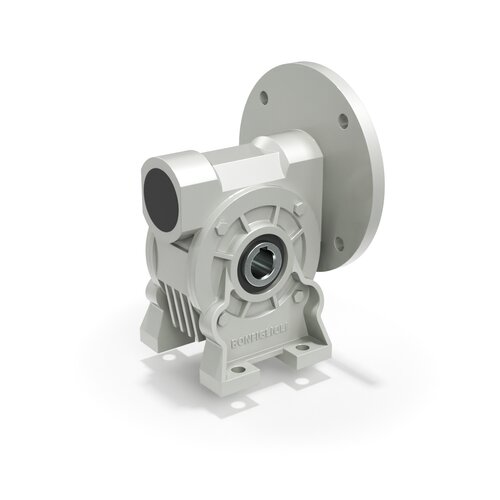

The Bonfiglioli VF44 F1 35 P71 B5 B3 is a right-angle worm gearbox from the VF/W Series, known for its high quality, advanced technology, and cost-effectiveness 1 2.

Key Features:
Type: Worm Gear Unit
Mounting Options: Flange and foot-mounted
Motor Compatibility: Can be paired with asynchronous motors (both IEC and compact)
Output Shaft Dimensions: Ø18 H7 mm
Input Speed: 1800 min⁻¹
Output Speed: 51.4 min⁻¹
Output Torque: 319.9 lb/in
Efficiency: 69.4%
Weight: Approximately 4.4 lbs.
