Description

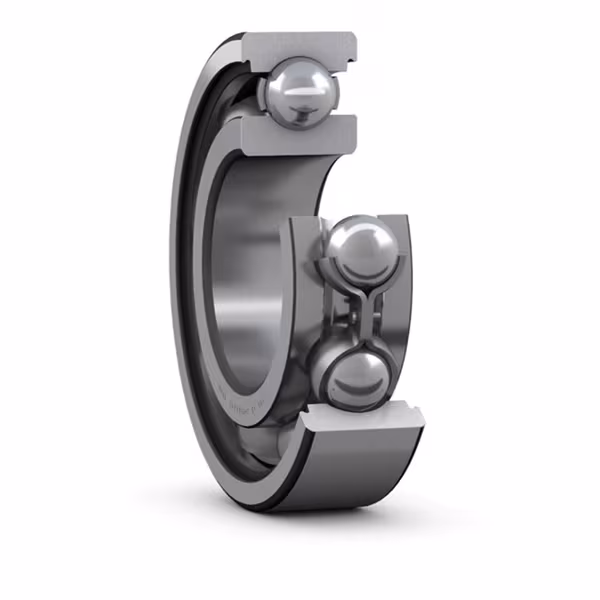

The SKF 6206 is a single row deep groove ball bearing. Here are some key features and specifications:

Design: Single row deep groove ball bearing.
Dimensions: Bore diameter of 30 mm, outside diameter of 62 mm, and width of 16 mm 1.
Material: Made from bearing steel with a sheet metal cage 1.
Sealing: Available with or without seals. The 6206-2Z variant has double shields 1.
Performance:
Basic dynamic load rating: 20.3 kN
Basic static load rating: 11.2 kN
Reference speed: 24,000 r/min
Limiting speed: 15,000 r/min.
